FT 2243/2

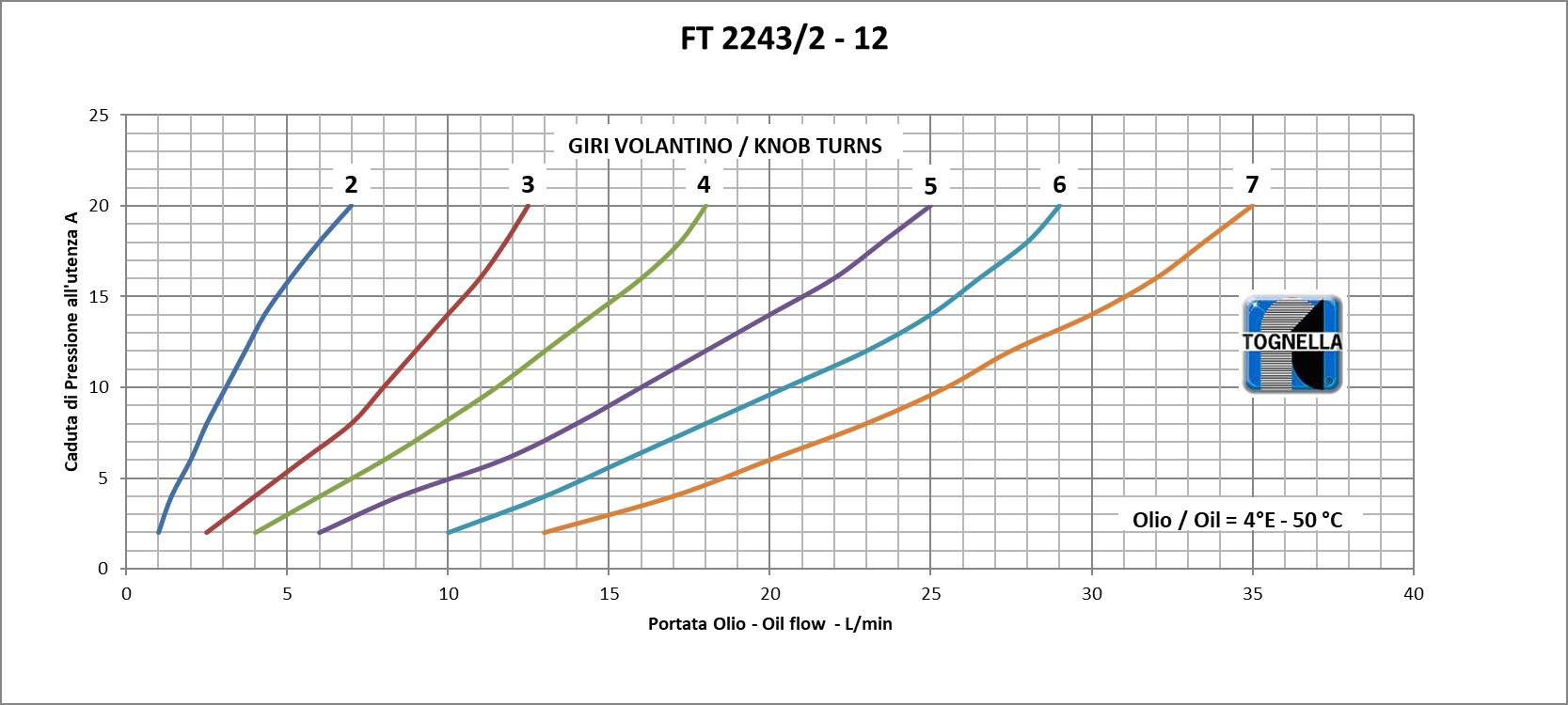

Double-acting flow contrl valves available from 1/4" to 3/4" size - METRIC THREADS. Max. working pressure 300 Bar, adjustable oil flow rate from 0,2 to 80 Lt./min. (depending on the size)

Double-acting control
No pressure compensated flow control
METRIC threads
Stainless Steel AISI 316
Double-acting flow/braking control valves

Product code composition

Choose the different options below to configure the most useful product code for your needs.

The code will be generated and sent automatically by clicking on "Submit a request".

FT 2243/2
Gasket

* (NBR - standard)
** (V - FPM - standard per valvole Inox)
E (EPDM)
N (NEOPRENE)
S (SILICONE)
V (FPM)

Handwheel

* (MA - standard - aluminium)
MP (ABS)
RA (Aluminium spoked)
** no knob

Sfiato

* (no bleed)
S (with bleed)

Versione Speciale
Submit a request

The request can be sent only upon completion of all the choice fields


Technical information

They are composed of a needle throttling which allows a very sensitive control. They can be used for assembling in manifolds and integrated blocks and are also used as cylinder braking valves. Recommended filtration: 60 micron or inferior. Max. working pressure: 300 bar
