FT 287/2

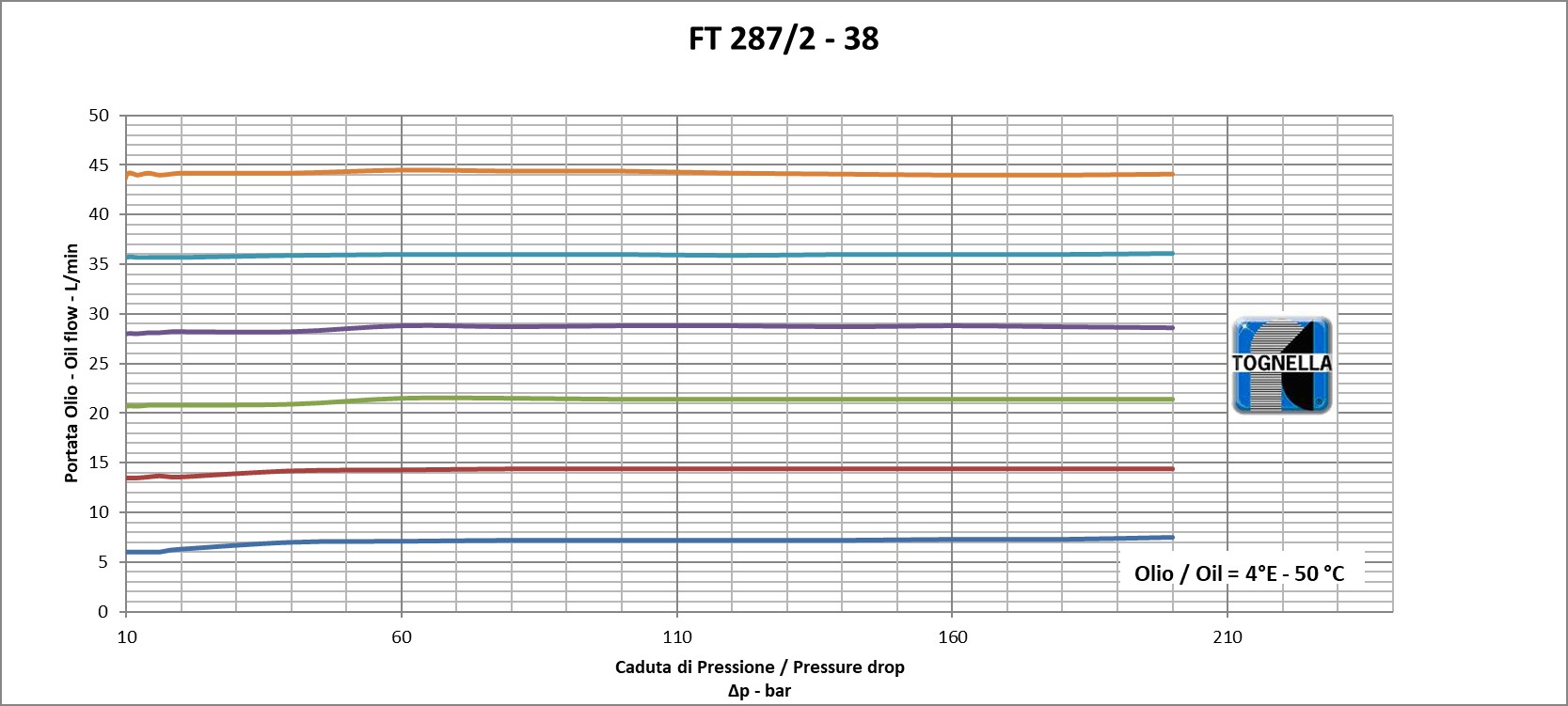

Compensated flow control valves available from 1/4" to 3/4" size - METRIC THREADS. Max. working Pressure 320 Bar, adjustable oil flow rate from 5 to 70 Lt./min. (depending on the size)
Product code composition
Choose the different options below to configure the most useful product code for your needs.
The code will be generated and sent automatically by clicking on "Submit a request".
* (NBR - standard)
** (V - FPM - standard per valvole Inox)
E (EPDM)
N (NEOPRENE)
S (SILICONE)
V (FPM)
* (MA - standard - aluminium)
MP (ABS)
RA (Aluminium spoked)
** no knob
* (no bleed)
S (with bleed)
The request can be sent only upon completion of all the choice fields
Technical information
Pressure compensated flow control valves, to insert in modular units in line. They are essentially composed of the central body of valves series FT 277/2 which may be screwed in units preset by the user. The construction and functional characteristics reflect exactly those described for the two inlet valves. It is recommended to keep them in their protective wrapping until the mounting, in order to avoid possible drawbacks caused by eventual entry of particles into the delicate and essential parts for a good working. On page 94 is proposed a machining scheme for the embedding seat, which has to be observed to ensure the necessary accuracy of the valve. The constructive system allows the user, already provided with those versions, either to request the two inlet base bodies only, so as to allow their quick transformation, or to store the single standard components to assemble in the various types according to the need.
