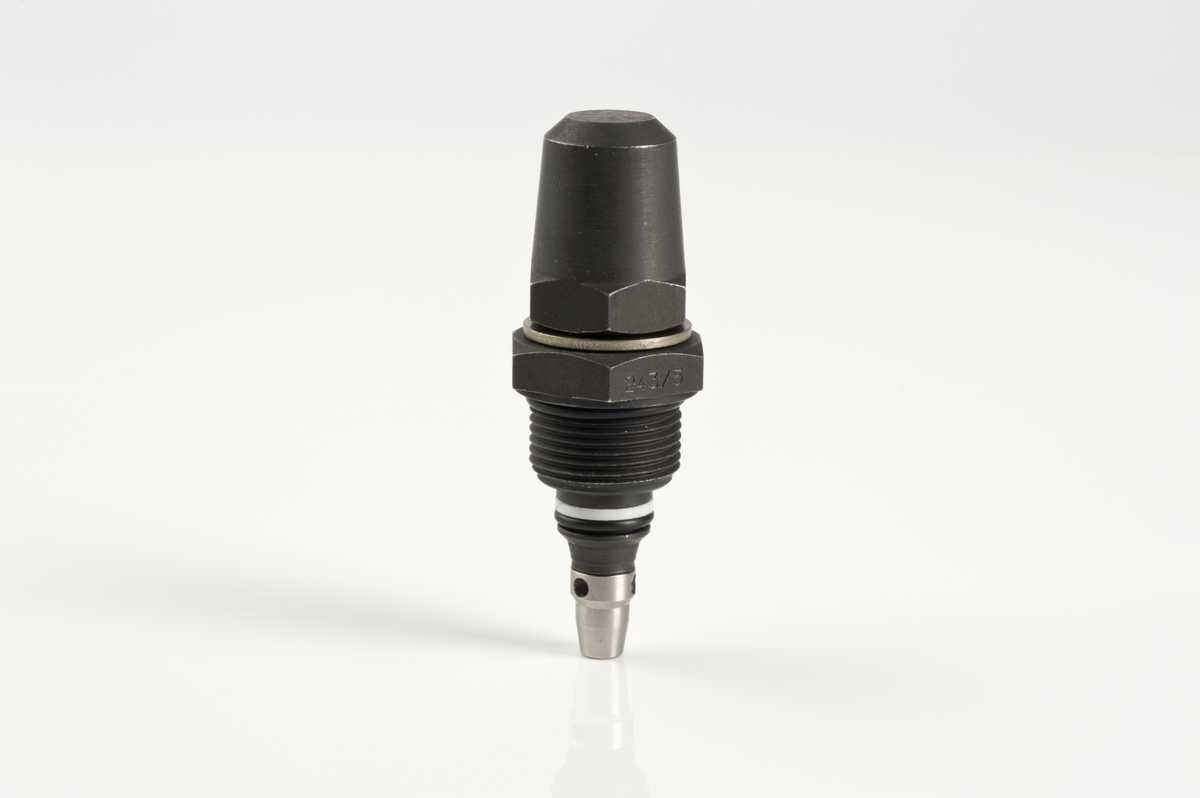

FT 243/5

Single-acting flow control valves available from 1/4" to 3/4" size - METRIC THREADS. Max. working pressure 300 Bar, adjustable oil flow rate from 0,2 to 80 Lt./min. (depending on the size)

Single-acting control
No pressure compensated flow control
METRIC threads
Carbon steel
Single-acting flow/braking control valves with and without bleed air execution

Product code composition

Choose the different options below to configure the most useful product code for your needs.

The code will be generated and sent automatically by clicking on "Submit a request".

FT 243/5

* (NBR - standard)
** (V - FPM - standard per valvole Inox)


* (MA - standard - aluminium)
RA (Aluminium spoked)
** no knob


* (no bleed)
S (with bleed)

Versione Speciale
Submit a request

The request can be sent only upon completion of all the choice fields

Technical information

They are composed of a needle throttling, inside which there is a ball single-acting valve. They can be used in the assembling in manifolds and integrated blocks and are also used as cylinder braking valves. The model FT 243/5-S can be used also as air breather. By removing the cap nut it is possible to unscrew the needle and uncover the coaxial passage which allows the breather of the underlying chamber. Recommended filtration: 60 micron or inferior. Max. working pressure: 300 bar
