FT 2243/5
Single-acting flow control valves available from 1/4" to 3/4" size - METRIC THREADS. Max. working pressure 300 Bar, adjustable oil flow rate from 0,2 to 80 Lt./min. (depending on the size)
![](/sites/default/files/prodotti/simbolo_oleodinamico/FT%20243_5_3.jpg)
![Single-acting flow/braking control valves](/sites/default/files/prodotti/foto_prodotto/Tognella_FT-2243_5-38.jpg)
Product code composition
Choose the different options below to configure the most useful product code for your needs.
The code will be generated and sent automatically by clicking on "Submit a request".
* (NBR - standard)
** (V - FPM - standard per valvole Inox)
E (EPDM)
N (NEOPRENE)
S (SILICONE)
V (FPM)
* (MA - standard - aluminium)
MP (ABS)
RA (Aluminium spoked)
** no knob
* (no bleed)
S (with bleed)
The request can be sent only upon completion of all the choice fields
Technical information

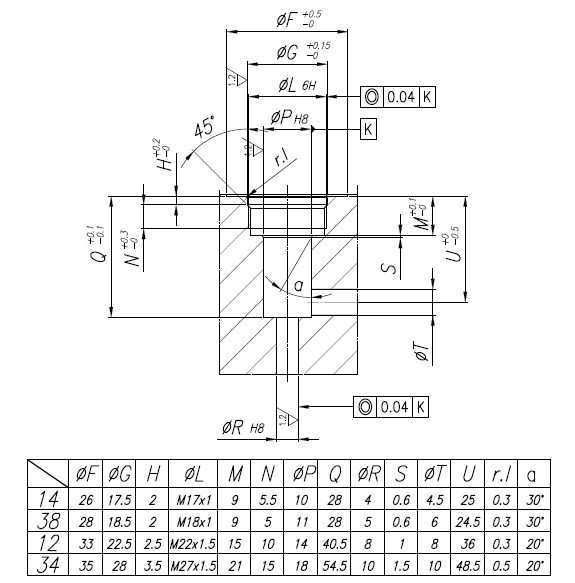

They are composed of a needle throttling, inside which there is a ball single-acting valve. They can be used in the assembling in manifolds and integrated blocks and are also used as cylinder braking valves. Recommended filtration: 60 micron or inferior. Max. working pressure: 300 bar
