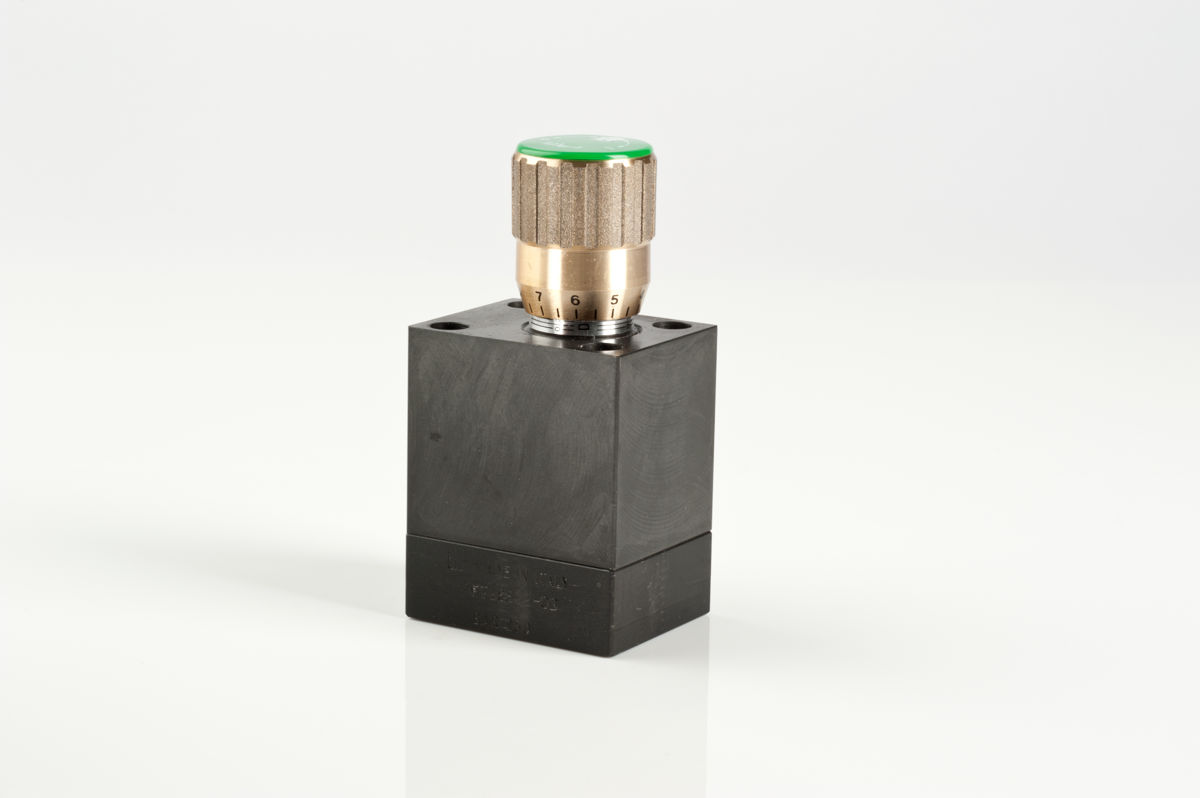

Plate Microfine PRESSURE COMPENSATED double-acting flow control valves

FT 288/2

Compensated double-acting flow control valves available in sizes 03 and 60. Max. working pressure 250 Bar, adjustable oil flow rate from 0,2 to 2,5 Lt./min.

Plate mounted valves
Pressure compensated double-acting control
Carbon steel
3D Draw
Download PDF
Plate Microfine PRESSURE COMPENSATED double-acting flow control valves

Product code composition

Choose the different options below to configure the most useful product code for your needs.

The code will be generated and sent automatically by clicking on "Submit a request".

FT 288/2
Gasket

* (NBR - standard)
E (EPDM)
N (NEOPRENE)
S (SILICONE)
V (FPM)

Handwheel

* (MA - standard - aluminium)
MP (ABS)
RA (Aluminium spoked)

Versione Speciale
Submit a request

The request can be sent only upon completion of all the choice fields

Technical information

They are the equivalent version with plate mounting of the control valve series FT 297/2 with threaded cartridge. Suitable for the adjustment of low flow rate with a high precision
and stability. They are provided with plate connections mod. CETOP 03 or interchangeable with the widely used valves ( kind 60).Connection O-rings are equipped in series.Max. working pressure 250 bar.
