FT 2260/6

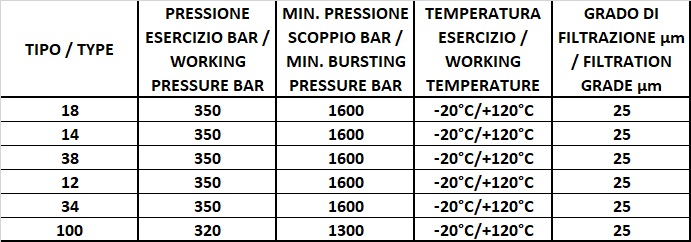

In line check valves available from 1/8" to 1" bsp. Max. working pressure 350/320 Bar, oil flow rate up to 160 Lt./min. (depending on the size) - suitable for use with gas and liquids in general

In line
Direct control
Stainless Steel AISI 316
In line stainless steel ball check valves with soft sealing

Product code composition

Choose the different options below to configure the most useful product code for your needs.

The code will be generated and sent automatically by clicking on "Submit a request".

FT 2260/6
Calibration (BAR)

2
4
4,5
6
8
10
* 0,5 (standard)
** 0,35 (standard)
*** 2 (standard)

Thread

* BSPP (standard)
** Metric threads (standard)
*** No thread (standard)
NPT
UNF

Gasket

* NBR (standard)
** No gasket (standard)
*** HPU (standard)
V (FPM)

Versione Speciale
Submit a request

The request can be sent only upon completion of all the choice fields


Technical information

They are inserted in branches of the circuit where the free flow in one direction is allowed and the return flow in the opposite direction is not possible. In line single-acting valves are of ball type with alignment guide made of composite high resistance material which allows a total passage and an excellent resistance to the use and the breaking strength confirmed by numerous tough tests. The "soft sealing " realized by a gasket made of special material eliminates every leakage also with the use of gas or liquids in general. They can only be supplied with standard cracking pressure 0,35 bar.
