FT 375/4
Pilot operated reducing pressure stackable valve permitting to check max pressure on A-B-P port with discharge in T.
Product code composition
Choose the different options below to configure the most useful product code for your needs.
The code will be generated and sent automatically by clicking on "Submit a request".
03 ( Cetop 03 )
05 ( Cetop 05 )
* NBR ( standard )
V
( FPM )
05
10
20
30
The request can be sent only upon completion of all the choice fields
Technical information

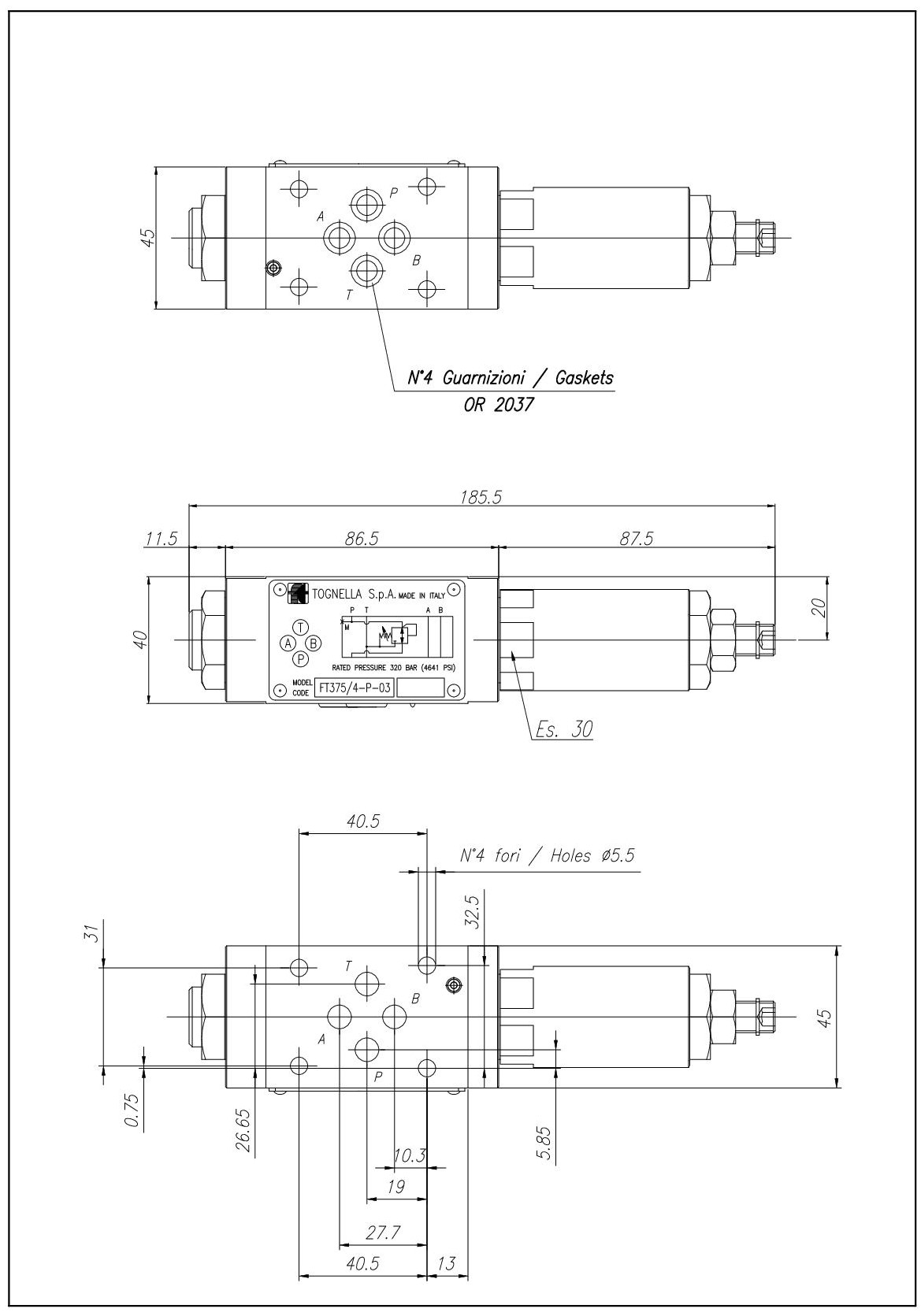

These valves are Cetop 03 reducing piloted pressure in plate modular execution, ISO 4401 for superimposable mountings. Their function is to protect the secondary circuit from over pressure as they allow an inverted flow rate from the use to the discharge T. Flow regulation up to 80÷300Bar.
