FT 357/5

Single-acting flow control stackable valves Cetop3 available with controlled flow on A-B or double A+B ports, max. working pressure 320 Bar, adjustable oil flow rate from 0,5 to 35 Lt./min.

Cetop 3 valves - NG6
Flow control
Single-acting control (Meter-out)
Carbon steel
Single-acting flow control valves Cetop 3 - ADJUSTMENT HANDWHEEL

Product code composition

Choose the different options below to configure the most useful product code for your needs.

The code will be generated and sent automatically by clicking on "Submit a request".

FT 357/5
Size

03 ( Cetop 03 )
05 ( Cetop 05 )

Control

* METER IN ( standard )
H ( METER OUT )
** (double acting)

Gasket

* NBR ( standard )
V ( FPM )

Submit a request

The request can be sent only upon completion of all the choice fields

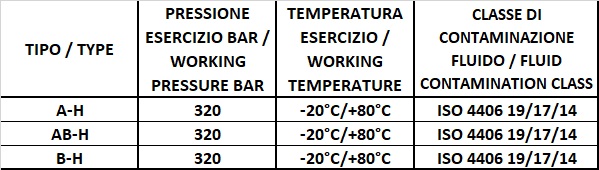

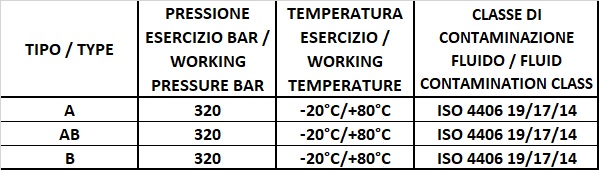

Technical information

Flow control valve, not compensated, for modular mounting with subplate surface according to ISO 4401-03. It allows a fine fluid regulation in a direction even with low flow rate, allowing the free flow in the opposite one. Single regulation available on A or B or double on A+B. Version with adjustment handwheel for flow rate regulation, it enables its locking thanks to the screw it is equipped with.
