FT-PR6SP

Sub-miniature pressure switches with electrical connection to terminals, IP00 protection degree ( without cap ) or IP65 ( with cap FT-KT-012 ). Zinc-plated steel body

Carbon steel
Switch rating:
48Vdc

Electrical contact:
NO or NC

Protection degree:
IP65

Electrical connection type:
Clamps

Actuation type:
Diaphragm
Adjustable diaphragm pressure switch with adjusting screw

Product code composition

Choose the different options below to configure the most useful product code for your needs.

The code will be generated and sent automatically by clicking on "Submit a request".

FT-PR6SP
Regulation setting

1 ( 0,2 ÷ 1 Bar )
2 ( 0,5 ÷ 2 Bar )
10 ( 1 ÷ 10 Bar )
20 ( 10 ÷ 20 Bar )
50 ( 20 ÷ 50 Bar )
200 ( 50 ÷ 200 Bar )
300 ( 20 ÷ 300 Bar )

Electrical contact type

A ( Normally Open )
C ( Normally Close )

Thread to process

18K ( 1/8"BSPT )
18NTP ( 1/8"NTP )
R18 ( 1/8"BSPP )
14K ( 1/4"BSPT )
14NPT ( 1/4"NTP )
R14 ( 1/4"BSPP )

Material

* ( Zinc Plated Steel - Standard )
** ( Brass - Standard )
SS (Stainless steel Aisi 316)

Diaphragm - Gasket material

* ( NBR - standard )
E ( EPDM )
HN ( HNBR )
S ( SILICONE )
V ( FPM )

Setting

* ( furnished without settings in firm - standard )
T.. ( Rising setting )
T..D ( Falling setting )

Special Version / Accessories
Submit a request

The request can be sent only upon completion of all the choice fields

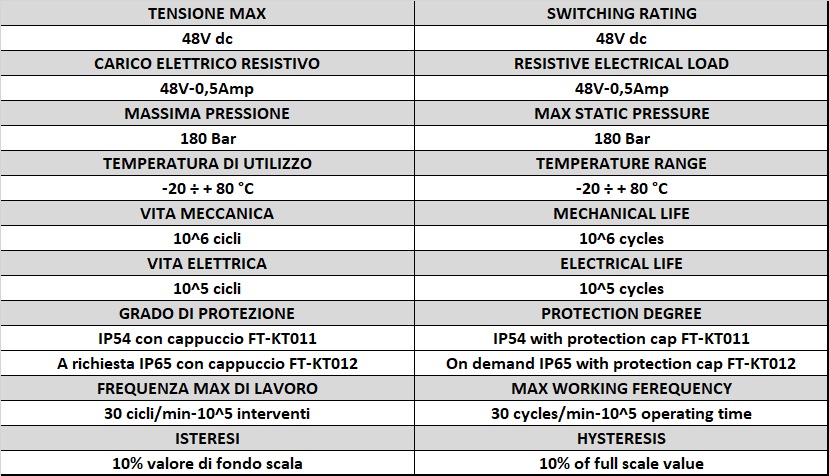

Technical information

Pressure switches of series FT-PR6 are the correspondant of series FT-P24 but with electric screw terminals connection. This particular configuration permits the installation,  in addition to the IP54 cap ( FT-KT011 ), of a rigid IP65 connector ( FT-KT012 )
