FT 280/6
Plate check valves available in sizes from 1/4" to 1/2" and Cetop 3 (03). Max. working pressure 250 Bar, oil flow rate up to 130 Lt./min. (depending on the size)
Product code composition
Choose the different options below to configure the most useful product code for your needs.
The code will be generated and sent automatically by clicking on "Submit a request".
2
4
4,5
6
8
10
* 0,5 (standard)
** 0,35 (standard)
*** 2 (standard)
* BSPP (standard)
** Metric threads (standard)
*** No thread (standard)
NPT
UNF
* NBR (standard)
** No gasket (standard)
*** HPU (standard)
V (FPM)
The request can be sent only upon completion of all the choice fields
Technical information

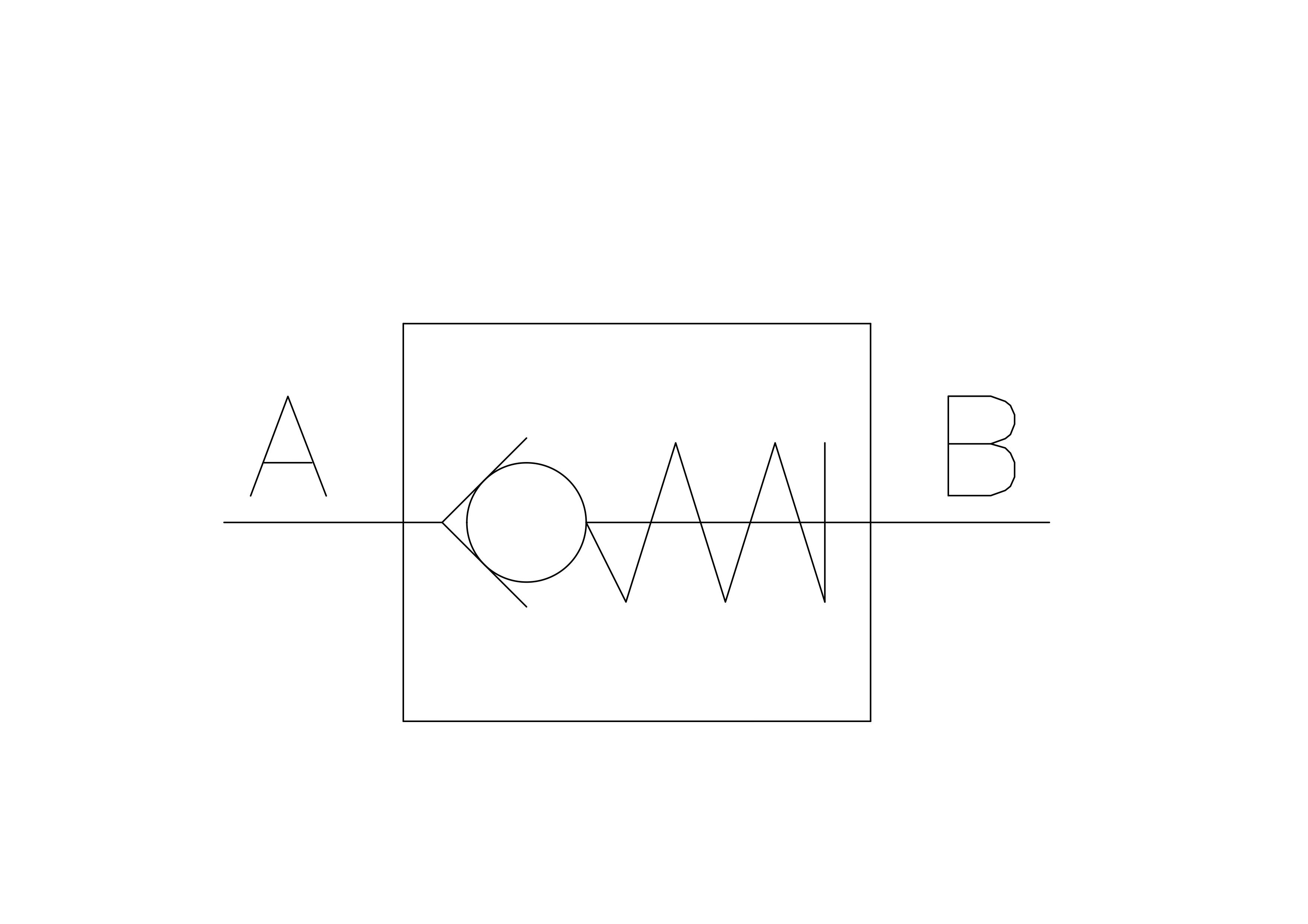

They are inserted in circuit branches where a free flow circulation is required in one direction and passage obstruction in the opposite one. The plate check-valves are both of ball type with alignment guide, made of composite Material with very high mechanical resistance, which allows a total passage and exceptional resistance to use and breakage, confirmed by the numerous and tough tests to which they were submitted. They may be supplied with two different cracking pressure (0,35 standard and 4,5 bar). They are provided with plate connections mod. CETOP 03 or interchangeable with the widely used valves. The connection O-rings are equipped in series. Max. working pressure 250 bar.
